1710-2170MHz 14dBi Directional Wall Mount Antenna 3g antenna

Product Categories

Shenzhen Ameison Communication Equipment Co.,Ltd.

Contact Now

Name: 17102170MHz 14dBi Directional Wall Mount Antenna 3g antenna
Brand: AMEISON
Price: 1 USD

Place of Origin : Shenzhen, China.

Brand Name : AMEISON

Model Number : AMXW-1722-14B

Certification : RoHS and REACH Compliant by Exemption

Frequency range（MHz） : 1710-2170

Bandwidth（MHz） : 460

Gain（dBi） : 14

VSWR : ≤2.0

Polarization : Vertical

Lightning protection : DC Ground

Input connector type : SMA Male or Requested

Price : FOB SHENZHEN

Packaging Details : bubble PP bag or EPE/inner box/master carton(safe export packaging)

Delivery Time : 10 days

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 80,000 Pieces per Month

MOQ : 500 pcs per item

Contact Now

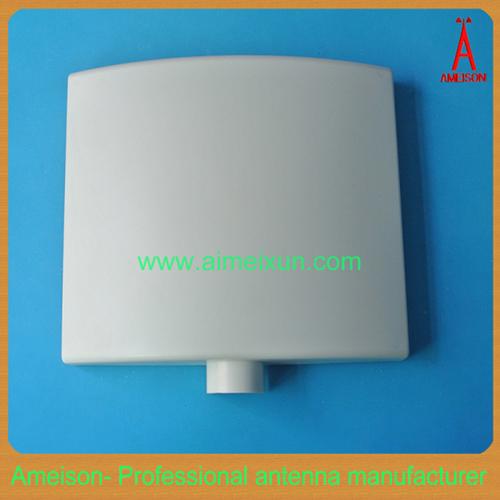

1710-2170MHz Directional Wall Mount Antenna

AMXW-1722-14B

Feature:

High gain

Strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

WCDMA/PCS/3G system

Wireless communication and data transmission system

AMXW-1722-14B Electrical Specifications
Frequency range(MHz)	1710-2170
Bandwidth(MHz)	460
Gain(dBi)	14
Half-power beam width(°)	H:30 V:30
VSWR	≤2.0
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	50
Lightning protection	DC Ground
Input connector type	SMA Male or Requested
Mechanical Specifications
Dimensions-mm (Height/Width/Depth)	22519547
Antenna weight(kg)	0.45
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Radome material	ABS
Radome color	white
Mounting hardware(mm)	￠35-￠50
